WiFi Analyzer: Real-Time 3D WiFi Network Analysis and Security Auditing

The Problem

Modern enterprise environments rely entirely on continuous wireless connectivity, yet wireless airspace remains one of the most opaque and vulnerable attack surfaces in the corporate infrastructure. Organizations face systemic challenges in maintaining both the performance and security of their wireless networks.

On the performance side, dense office environments suffer from channel congestion, co-channel interference, and poor band-steering configurations that lead to dropped connections and lost productivity. On the security side, wireless intrusion attempts—such as rogue access points, evil twin attacks, and deauthentication floods—often go unnoticed because traditional endpoint security tools have no visibility into Layer 2 wireless frames.

The status quo for addressing these challenges is deeply fragmented. Organizations typically rely on rudimentary menu-bar scanners that provide insufficient data, or they deploy expensive, dedicated hardware sensors that require complex infrastructure integrations. Furthermore, when vulnerabilities are detected, standard tools fail to provide actionable, vendor-specific remediation steps, leaving IT administrators to translate abstract security warnings into concrete configuration changes. There is a structural gap in the market for a tool that combines deep packet-level wireless insights, advanced spatial visualization, and compliance-mapped security auditing into a single, highly accessible software deployment.

Solution Overview

WiFi Analyzer is a native macOS application designed to transform standard Apple hardware into a professional-grade wireless security and network analysis platform. Currently in Beta, the product bridges the gap between basic WiFi scanners and complex hardware sensors by leveraging low-level Apple frameworks (CoreWLAN and Metal) to deliver real-time data ingestion and hardware-accelerated 3D visualization.

The core architectural thesis behind WiFi Analyzer is the elimination of third-party dependencies. By relying exclusively on native APIs, the application achieves sub-millisecond rendering latency and maintains a minimal attack surface. It processes all wireless data entirely on-device, ensuring compliance with strict data privacy mandates. WiFi Analyzer was designed to immediately surface actionable intelligence—translating raw RSSI, noise, and beacon intervals into compliance mappings, threat narratives, and precise remediation steps for leading hardware vendors.

Key Capabilities

Real-Time 3D Metal Visualizations

Unlike traditional table-based scanners, WiFi Analyzer renders the wireless environment in three hardware-accelerated 3D views built directly on Apple's Metal framework.

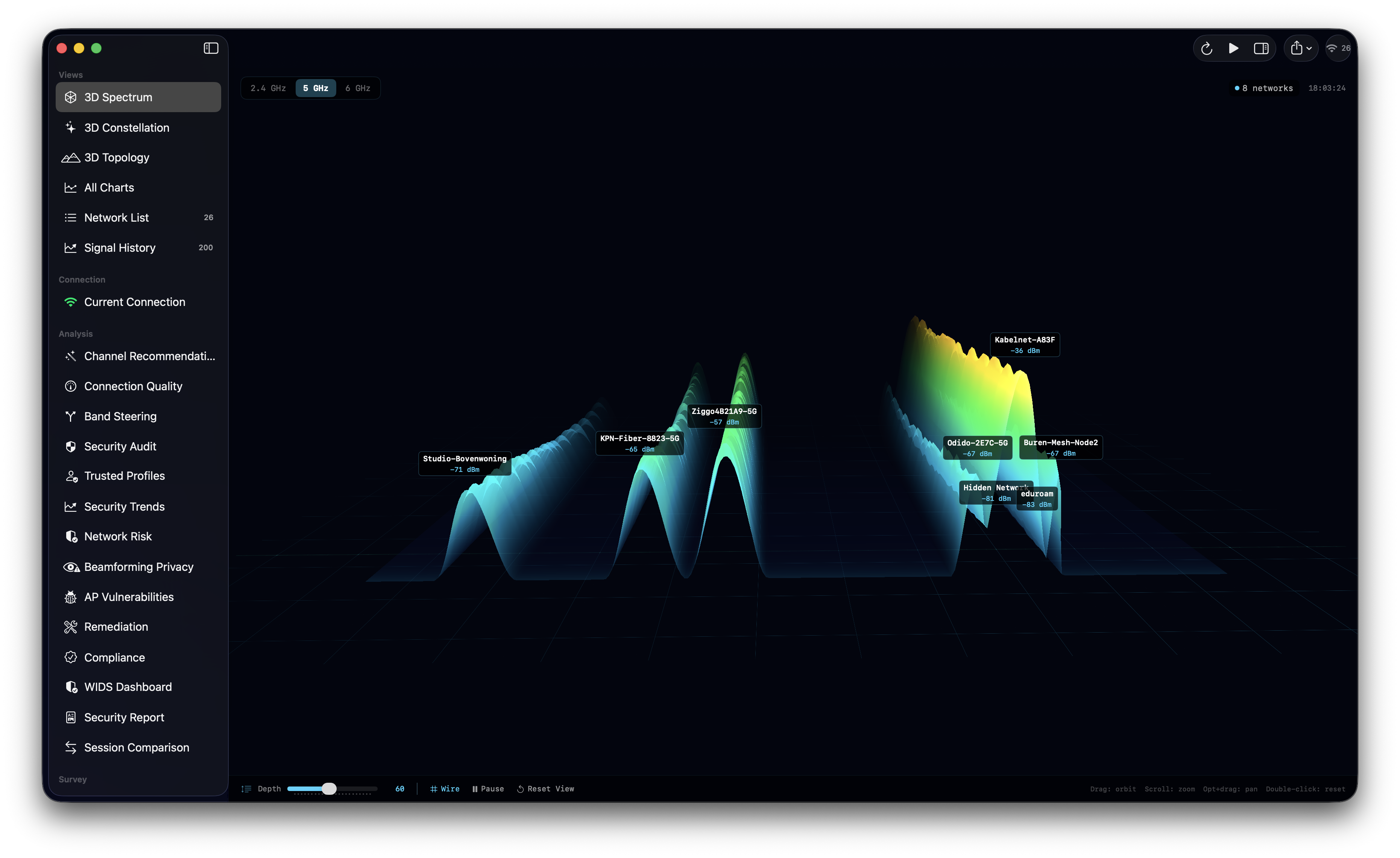

• 3D Spectrum Waterfall: Projects a terrain mesh where channels are mapped on the X-axis, time on the Z-axis, and signal strength defines the height. Topographic heat coloring and an interactive arcball camera allow network engineers to visually identify transient interference patterns over time.

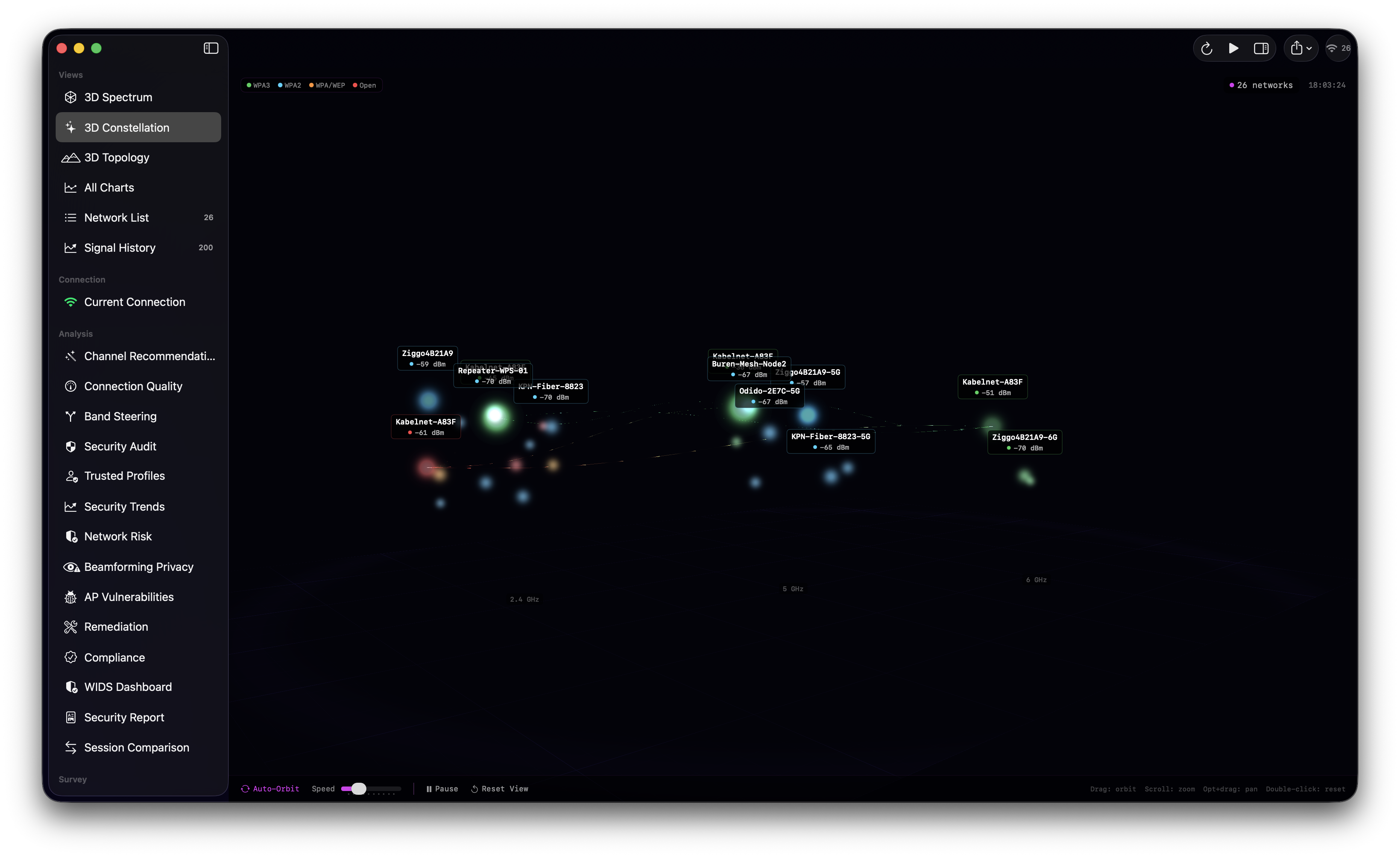

• 3D Network Constellation: Renders animated orbs positioned by channel and frequency band, utilizing particle trails to connect access points sharing the same SSID. This view instantly reveals network roaming topology and visually isolates rogue access points broadcasting an authorized SSID on anomalous channels.

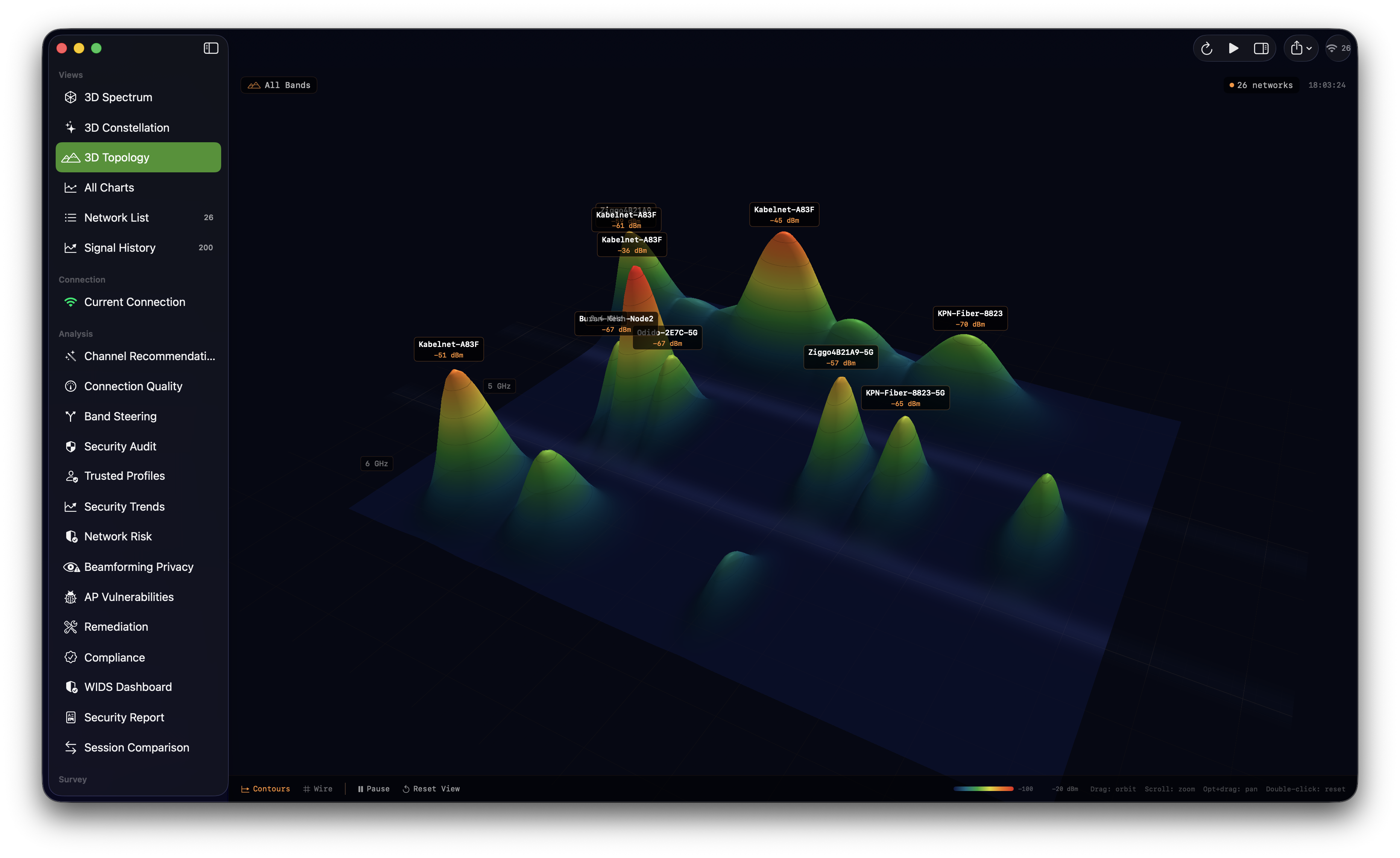

• 3D Signal Topology: Provides a unified terrain surface across the 2.4, 5, and 6 GHz bands, applying real-time morphing between scan frames to visualize the absolute density of the wireless airspace.

Wireless Intrusion Detection System (WIDS)

The integrated WIDS engine continuously monitors event-driven updates from the wireless interface to identify sophisticated attack patterns.

• Threat Correlation: The engine correlates discrete events to identify complex attacks. For example, it detects Evil Twin attacks by recognizing a deauthentication flood combined with a rogue AP broadcasting the same SSID. It identifies credential theft attempts by correlating DNS hijacking signatures with captive portal redirects.
• 18-Category Security Audit: Every discovered network is evaluated against 18 distinct security checks ranging from Critical (WEP/WPA1 usage, Open networks) to High (SSID spoofing, rogue APs) to Medium (missing 802.11w PMF, WPS enabled, beacon anomalies).
• Network Risk Scoring: Generates a weighted risk score based on 11 factors, including encryption strength, signal anomalies, hardware age estimation (via OUI lookup), and channel congestion.

Channel Analysis and Band Steering

WiFi Analyzer automatically ingests BSSID and link state data to optimize wireless performance.

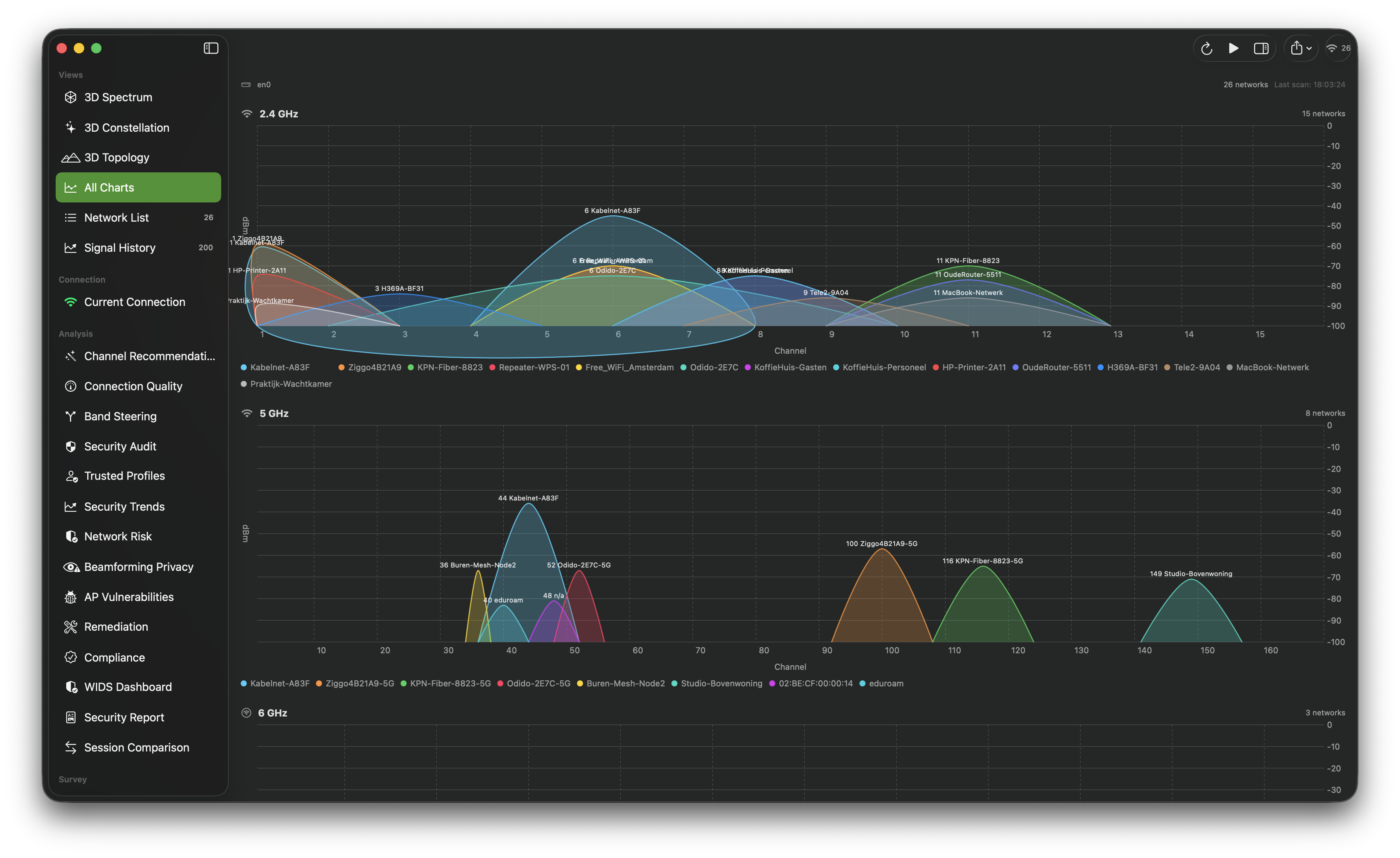

• Recommendation Engine: Calculates channel utilization and congestion scoring to recommend optimal channels per band.
• Band Steering Analysis: Groups multi-band SSIDs and analyzes signal strength, WiFi generation (WiFi 4/5/6), and channel width (20/40/80/160 MHz) to recommend optimal band placement for client devices.
• Latency and Connection Health: Conducts continuous ping-based measurements tracking jitter, packet loss, and minimum/maximum/average latency. Connection health is scored dynamically, detecting forced roaming, transmit rate drops, and signal instability.

Compliance Mapping and Remediation

The application automates the translation of wireless vulnerabilities into audit-ready compliance reporting.

• Framework Mapping: Security findings are directly mapped to specific regulatory controls, including PCI DSS 4.0 (Requirements 2.3.1, 4.2.1, 11.2.1), HIPAA, ISO 27001:2022, and NIST SP 800-153.
• AP Vulnerability Assessment: Integrates a known CVE database (including KRACK, FragAttacks, and Dragonblood) mapped to hardware families estimated via MAC OUI and WiFi generation. It automatically flags end-of-life hardware.
• Vendor-Specific Guidance: Generates step-by-step remediation instructions tailored to specific controller environments, including Ubiquiti, Cisco/Meraki, Aruba, Netgear, and others, complete with effort estimates and priority triage.

Spatial Signal Survey

WiFi Analyzer supports comprehensive indoor site surveying without requiring external floorplan software. Administrators can import floor plan images, utilize a click-to-measure workflow to record signal data across physical locations, and generate spatial heatmaps. The heatmapping engine utilizes configurable Inverse Distance Weighting (IDW) interpolation to visualize coverage gaps, which can be exported directly as high-resolution PNGs.

Architecture & Technical Design

WiFi Analyzer is engineered strictly as a native macOS application, built entirely with Swift 5.9 and SwiftUI. The application relies on a zero-dependency architecture—it includes no third-party libraries, frameworks, or open-source packages. This philosophy eliminates supply chain vulnerabilities, reduces the application footprint, and ensures seamless performance on Apple Silicon.

Data ingestion relies on event-driven updates from CoreWLAN and CoreLocation (required by macOS 14+ for SSID access). The application maintains a rolling buffer of scan history, processed locally. Visualization pipelines bypass standard UI layers, directly feeding structured network data into custom Metal vertex and fragment shaders for 60fps hardware-accelerated rendering.

Privacy and security are enforced at the architectural level. WiFi Analyzer runs entirely on-device within the macOS App Sandbox. It does not phone home with telemetry, nor does it transmit discovered SSID, BSSID, or location data to the cloud. Network connections are strictly limited to explicit user actions, such as captive portal checks or local latency pings. Export capabilities (CSV via RFC 4180, JSON via ISO 8601, and PDF) write directly to user-selected local directories.

Use Cases & Scenarios

Retail Compliance Officer Ensuring PCI DSS Standards

Challenge: A retail chain must prove compliance with PCI DSS 4.0 requirement 11.2.1, which mandates quarterly wireless analyzer scans to identify unauthorized access points. Solution: The compliance officer walks the retail floor with WiFi Analyzer running on a MacBook. The application automatically maps discovered open networks and legacy hardware to PCI DSS controls. Outcome: The officer exports a formatted PDF report that explicitly lists the rogue APs, proving audit compliance and providing the IT team with the exact MAC addresses needed to trace the unauthorized hardware.

Red Team Operator Executing Wireless Penetration Tests

Challenge: During an engagement, a security consultant needs to map the target's wireless footprint and identify misconfigured access points prone to transition mode attacks or missing PMF. Solution: The consultant uses the 3D Network Constellation view to instantly identify APs sharing the target SSID. The 18-category security audit flags networks vulnerable to PMF downgrade attacks and cross-references hardware OUIs against known CVEs like FragAttacks. Outcome: The operator rapidly isolates the weakest entry point in the wireless infrastructure, accelerating the reconnaissance phase of the engagement.

Network Administrator Troubleshooting High-Density Office WiFi

Challenge: Employees in a specific conference room consistently report dropped calls and slow speeds, despite access points showing as online in the central dashboard. Solution: The administrator loads the office floor plan into the Signal Survey module, conducting a click-to-measure walk-through. The resulting IDW-interpolated heatmap reveals severe co-channel interference from an adjacent tenant's access points. Outcome: Utilizing the Channel Analysis recommendation engine, the administrator reconfigures the office APs to uncontested 5 GHz DFS channels, immediately resolving the latency and roaming drops.

Helpdesk Technician Resolving Remote Worker Issues

Challenge: A remote executive complains of unstable connectivity at their home office. The corporate helpdesk has no visibility into the executive's residential network environment. Solution: The executive installs WiFi Analyzer and starts a named scan session. The software tracks connection health, latency, and roaming events. The executive exports the JSON session log and sends it to the helpdesk. Outcome: The helpdesk imports the session data, uses the side-by-side comparison tool, and identifies that the executive's device is continuously bouncing between a 2.4 GHz router and a poorly positioned extender. They advise the executive to adjust the extender location, solving the issue.

Pricing & Plans

WiFi Analyzer is a locally installed, downloadable native macOS application. It is available through flexible licensing models, ranging from standard subscriptions to one-time lifetime licenses.

Plan	Price	Billing	Key Features
Monthly	€10	Monthly	All 3D Metal visualizations, 18 security audit checks, Channel analysis, Future updates
Yearly	€96	Annually	Everything in Monthly, 2 months free, Priority support
Lifetime v1	€149	One-time	All v1.x updates included, All visualizations & tools, Signal survey heatmaps, No recurring fees
Enterprise	Custom	Annual	Volume licensing, MDM deployment support, dedicated account manager, prioritized feature requests

Pricing Philosophy: We believe in aligning value with deployment preference. Users who prefer predictable OPEX can utilize the subscription models, while the Lifetime v1 license caters to users who prefer traditional CAPEX software purchases. The Enterprise tier provides the necessary volume licensing and MDM deployment structures for corporate fleets. All standard plans include a 14-day free trial.

Frequently Asked Questions

What are the system requirements for WiFi Analyzer? WiFi Analyzer requires a Mac running macOS 14.0 (Sonoma) or later. Due to its native Metal and SwiftUI architecture, it performs optimally on Apple Silicon (M1/M2/M3/M4) but is fully compatible with Intel-based Macs that support macOS 14.

Do I need external wireless adapters to use this software? No. WiFi Analyzer is designed to leverage the built-in wireless interface of your Mac. It interfaces directly with CoreWLAN to provide comprehensive scanning and packet analysis without requiring external USB adapters or dedicated sensors.

How does the application handle the privacy of my network data? All processing, scanning, and threat analysis occurs entirely on-device. WiFi Analyzer does not require an active internet connection to perform its core functions, and it never uploads your network topology, SSIDs, or BSSIDs to any cloud service.

Why does the application require Location Services permissions? Starting with recent versions of macOS, Apple mandates that any application attempting to read local WiFi network information (like SSIDs and BSSIDs) must be granted Location Services permission by the user. This is an OS-level privacy enforcement, as network data can technically be used to infer physical location.

Why Amsterdam Technologies

Amsterdam Technologies operates on a strict engineering-first philosophy. Headquartered in Amsterdam, Netherlands, we focus on building high-performance, native software that respects system resources and user privacy. WiFi Analyzer embodies this approach by completely eschewing bloated web frameworks and third-party dependencies in favor of raw, low-level Apple APIs. This dedication to craftsmanship results in tools that are not only highly secure and reliable but also remarkably fast.

As wireless networks become the exclusive backbone of corporate connectivity, visibility into the physical and logical layers of the airspace is non-negotiable. WiFi Analyzer provides the technical depth required by security professionals, packaged within an intuitive, hardware-accelerated interface.
